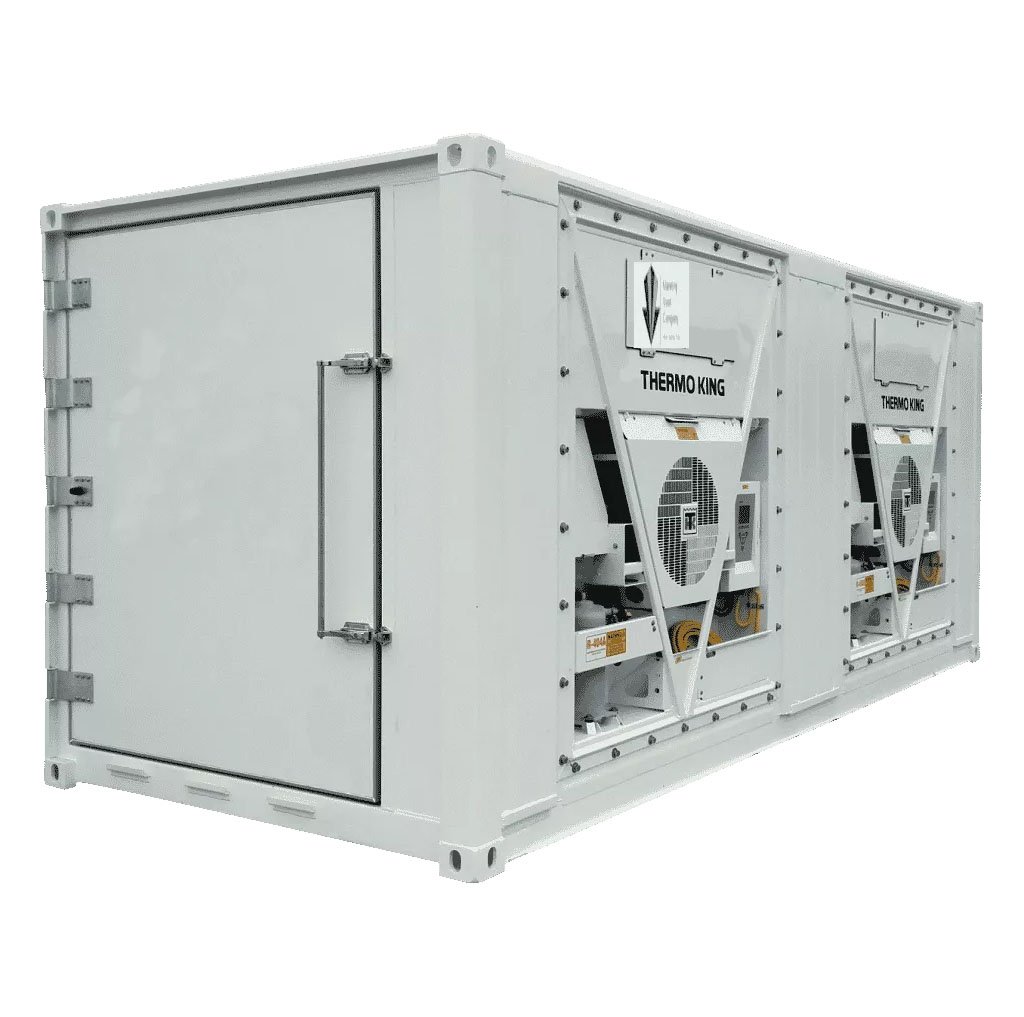

White refrigerated container with two Thermo King refrigeration units at one end

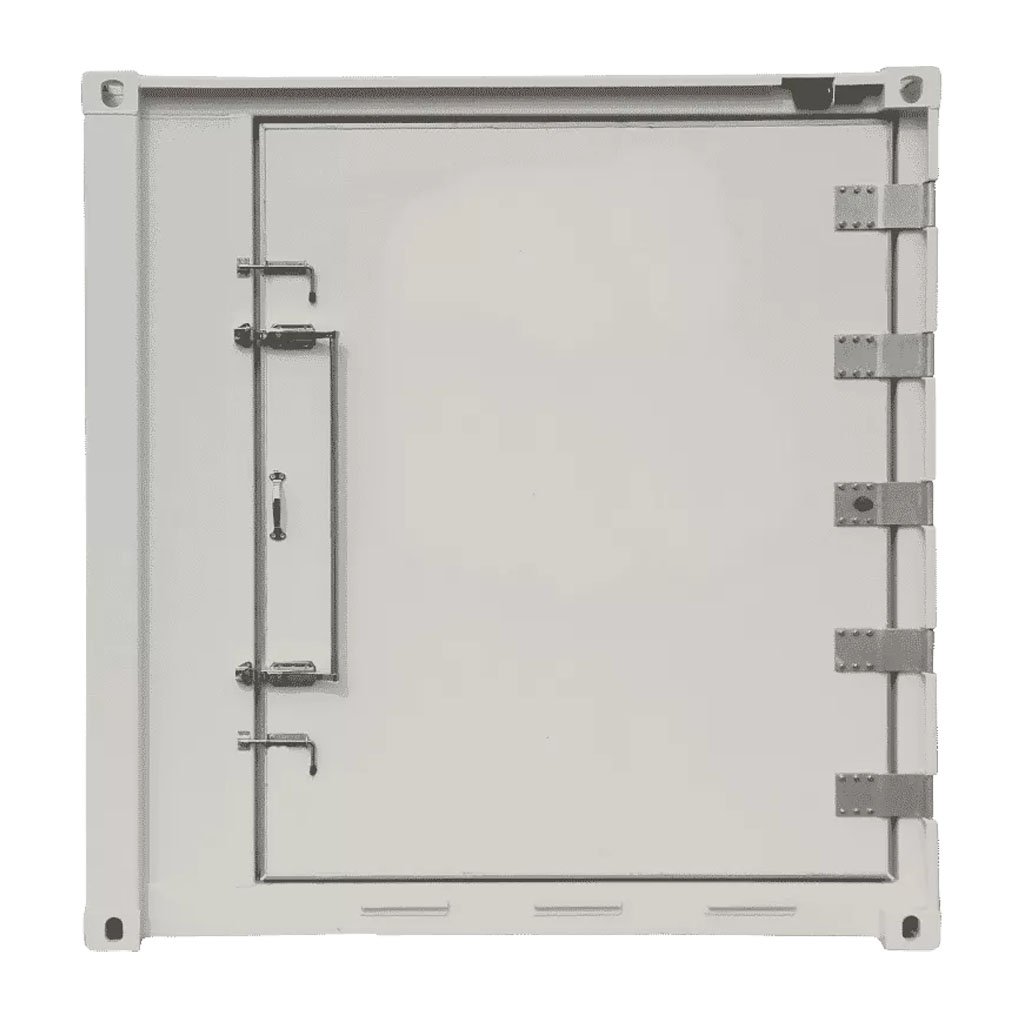

Insulated personnel door with long locking handles on the end of a refrigerated container

20FT Blast Freezer Container-40°F TO 70°F (460V/230V 3P)

Original price was: $6,500.00.Current price is: $5,700.00.

Built to pull heat out fast rather than merely hold it: -40°F to 70°F, with a butcher door, walk in curtains and a flat floor. 22,000lbs of fish reaches a 0°F core in approximately 44 hours.

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
Categories: ,

Description

A 20ft blast freezer container working across a -40°F to 70°F range. A blast freezer is not a cold store. It is built to pull heat out fast, which is a different machine on a different duty cycle. On average values, 22,000lbs of fish will be cooled to a 0°F (-18°C) core temperature from 41°F (5°C) in approximately 44 hours.

Who runs one

Fishing operations, meat processors and anyone who has to get product through the freezing band quickly rather than eventually. The butcher door and walk in curtains are fitted because people go in and out repeatedly during a run, and the flat floor lets product move on wheels rather than over grating.

Specifications

  • Temperature range: -40°F to 70°F
  • Cold storage blast freezer with easy open butcher door and walk in curtains
  • Flat floor and LED interior lights
  • Requires two power supplies: 460V 3 phase or 230V 3 phase with optional transformer
  • Internal capacity: 23.8m3 (841 Cu.ft)
  • Door opening: width 1,737 0/-5mm (5’-8 25/64” 0/-3/16”), height 2,232 0/-5mm (7’-3 7/8” 0/-3/16”)
  • Cargo access height: 2,232 0/-5mm (7’-3 7/8” 0/-3/16”)
  • Max. gross weight: 24,000KG (52,910LB). Tare weight: 2710KG (5980LB). Tare weight incl. unit (740 kg): 3450KG (7600LB). Max. payload: 20550KG (45310LB)
  • Insulation: roof 90mm at 40kg/cu.m; side walls 65mm at 45-50kg/cu.m; door panels 81mm at 45-50kg/cu.m; floor 101/51mm at 45-50kg/cu.m
  • Heat leakage value: Umax = 30 kcal/deg.c.hr. at the mean wall temperature 293K (20 °C)
  • Max. air leakage value: Qmax = 14 m3/hr. (incl. reefer unit max. 0.5m3/h) measured at 250+-10Pa
  • Total capacity of 12,600Kcal/hr (49,600Btu/hr) at ambient 100°F (37.8°C) and evaporator return air temperature 0°F (-18C)

Before you order

Confirm your three phase supply first, because this unit needs 460V or 230V three phase and a transformer is an optional extra rather than standard. Delivery is nationwide from Greenville, TX at a flat $450 per order, by bank transfer. Call +1 430 280 1063 or email info@marinercontainers.com.
