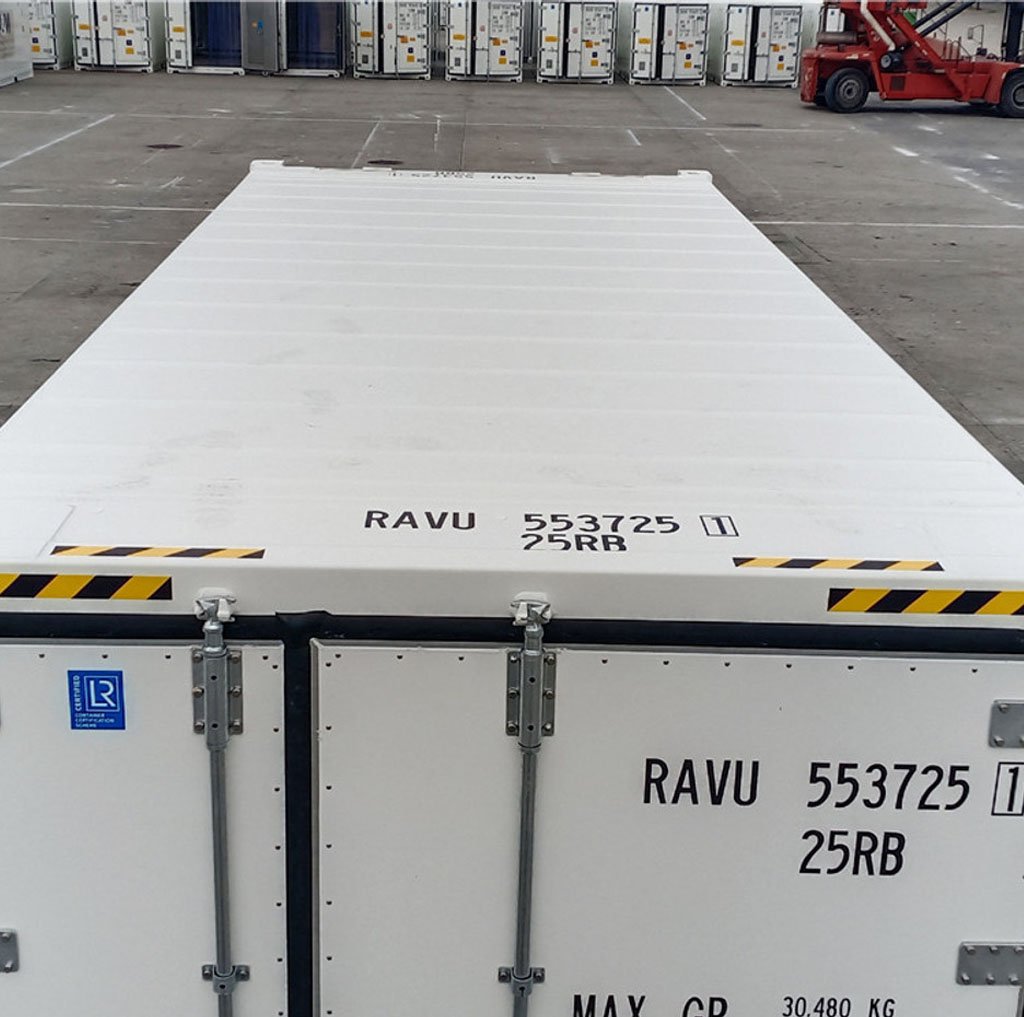

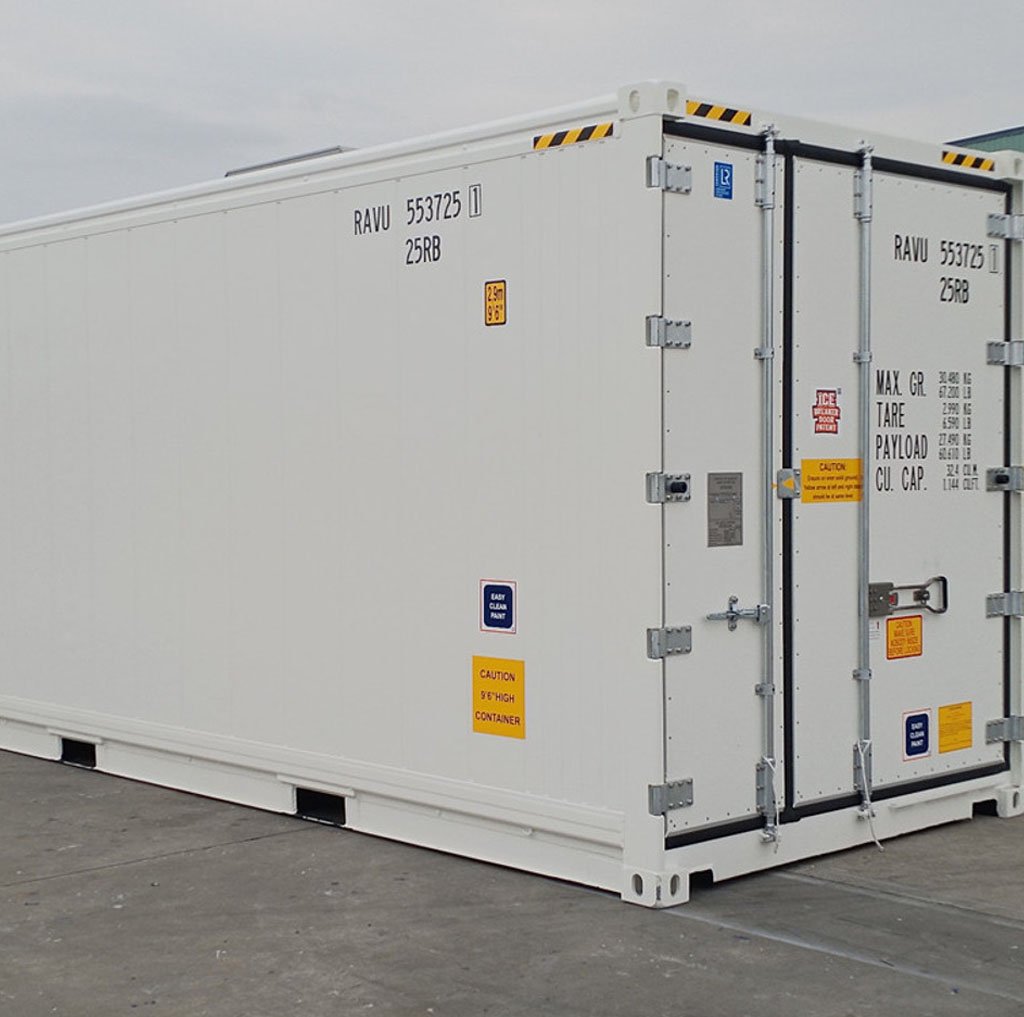

20ft One Trip Refrigerated Shipping Container

Description

A one-trip 20ft refrigerated container holding a temperature range between 75 and -20 degrees Fahrenheit. That span covers chilled and frozen in the same box, which is why a single 20ft reefer is often all the cold storage a smaller operation needs.

What it holds and for whom

Consistent cold for food storage or a chemical supply, and anything else that cannot be allowed to drift. Restaurants, producers, laboratories and event operators buy them where a walk-in is not practical or not permanent. One-trip condition matters more on a reefer than on a dry van, because the insulation, the door seals and the machinery have not spent a decade being cycled before you get them.

Specification and power requirements

• Temperature range: 75 to -20 degrees Fahrenheit
• Runs on 50 or 60 Hz
• Power supply must be grounded and contain circuit breakers functioning at a minimum of 30 amps
• If the supply is 208/230 volt, breakers must be a minimum of 50 amps
• Supports a voltage variance of (+) or (-) 15% and must be protected from power surges
• Internal circuit breakers protect the fan motors and control circuits
• Supplied on delivery with a 460-volt cable and a standard ISO CEE 59-foot power plug
• 230-volt cables do not come with power plugs
• Exterior: length 20′, width 8′, height 8′6″

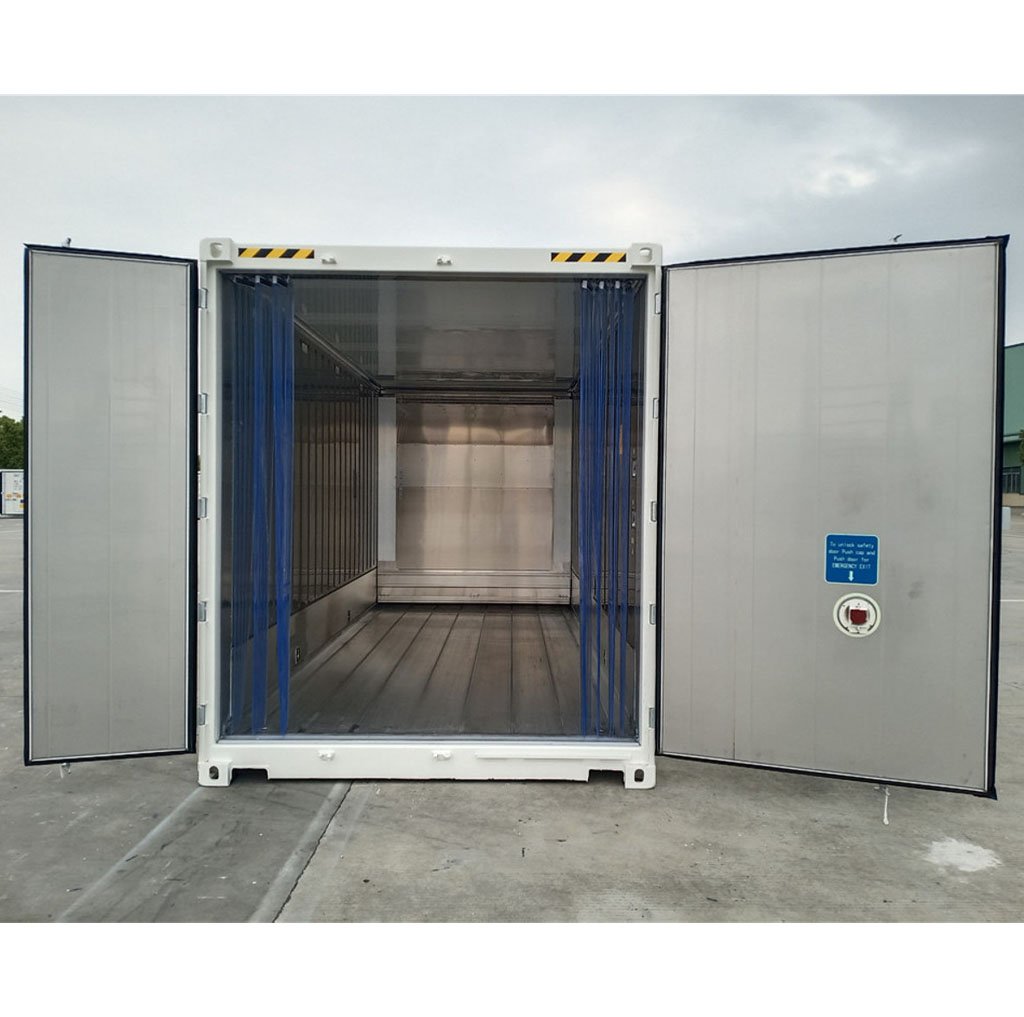

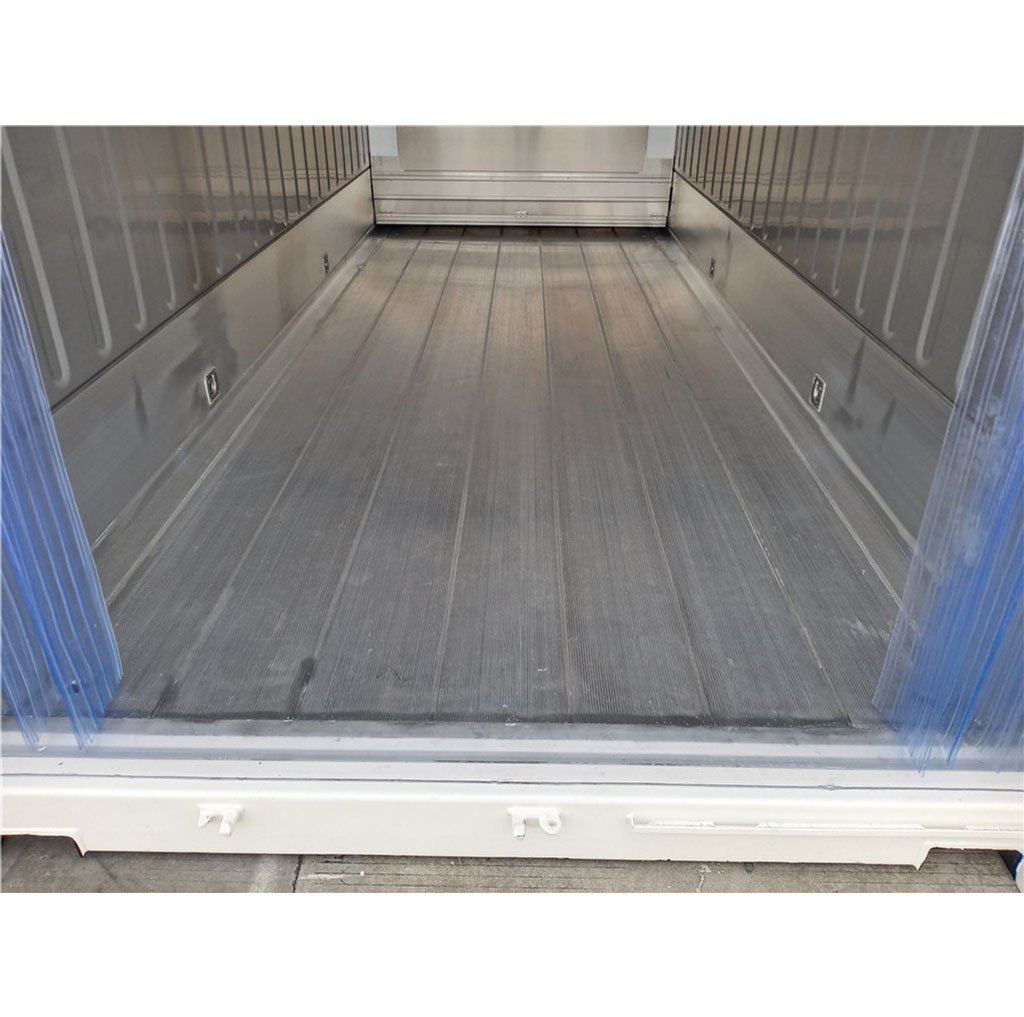

• Interior: length 18′, width 7′6″, height 7′4″

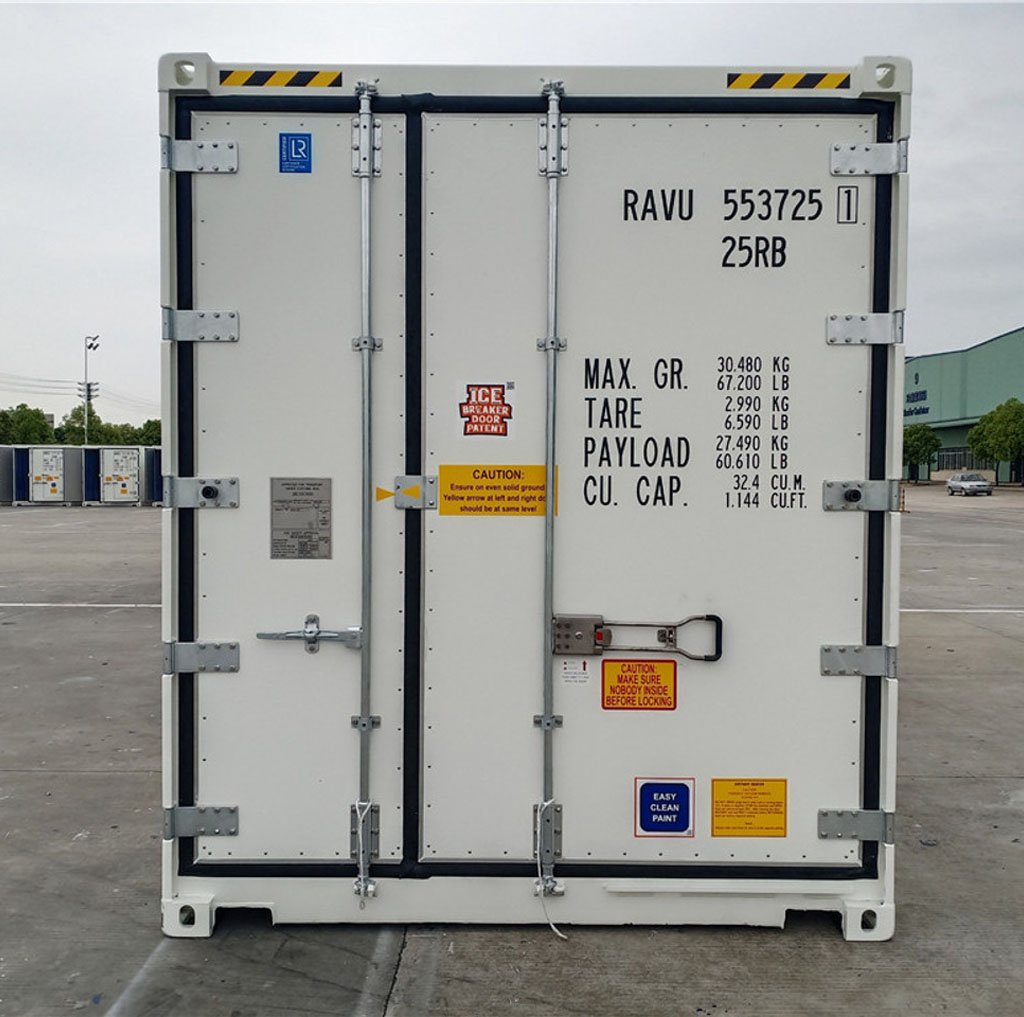

• Door opening: width 7′6″, height 7′4″
• Tare: 5800 lbs. Max gross: 65,458 lbs
• Fork pockets: height 0′ 4 1/2″, width 1′ 2 3/16″, center 6′ 9 7/8″

Before delivery

Get the electrical supply confirmed first. A reefer that arrives with nowhere to plug in is an expensive insulated box until an electrician gets to it. Delivery is nationwide from Greenville, TX at a flat $450 per order, paid by bank transfer. Call +1 430 280 1063 or email info@marinercontainers.com.
